Decelerometer

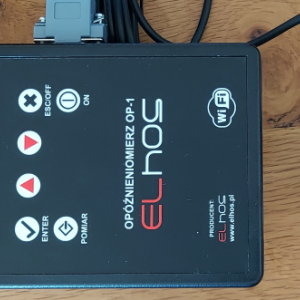

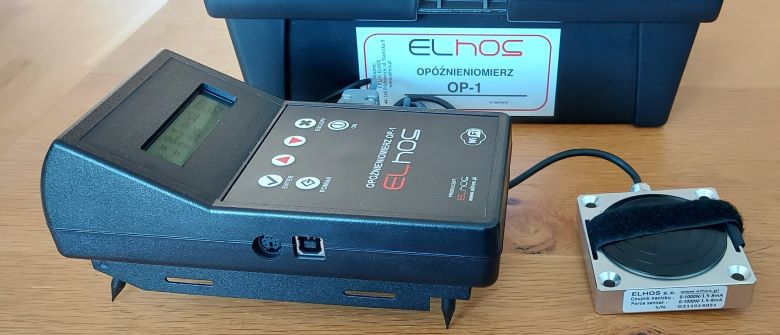

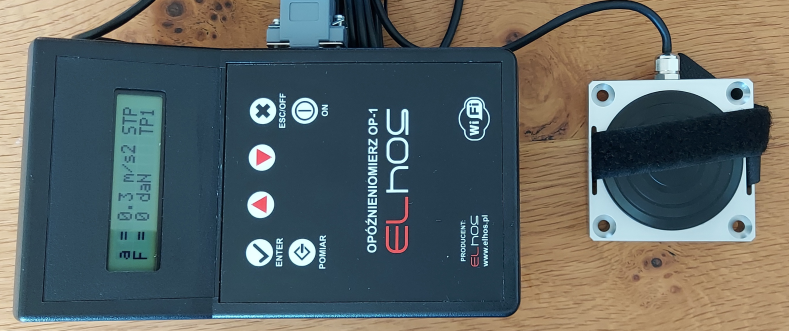

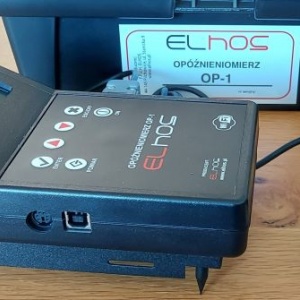

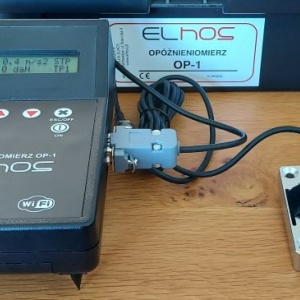

The OP-1 decelerator is a microprocessor device designed for real-time measurement and recording of deceleration during braking of vehicles, including motor vehicles, agricultural tractors, motorcycles and others. In addition, the device has the ability to measure the pressure on the brake pedal using a dedicated gauge (optional) with the simultaneous registration of these values. The device has a built-in WiFi module for communication with a PC in order to print the protocol and archive the measurement results. Additionally, the device is equipped with a thermal printer (option) which enables the report to be printed directly from the OP-1 device (without connection to a PC).

Technical data :

  • power supply: DC 9V (battery), power cord from the 12V socket (option)
  • acceleration measuring range: 10 m / s2
    • resolution: 0.1 m / s2
    • permissible error: 0.1 m/s2
  • brake pedal pressure measurement range: 100 daN
    • resolution: 1 daN
    • permissible error: 1 daN
  • memory: 15 measurements
  • real-time clock
  • measurement triggering modes:
    •  manually
    • automatically:
      • from pressure
      • from acceleration
  • WiFi for communication with a PC
  • PC software

Basic equipment:

  • OP-1 decelerometer
  • 9V battery
  • manual release (Start / Stop)
  • silicone feet (4 pcs.)
  • metal-conical feet (4 pcs.)
  • rubber straps for attaching to a motorcycle (2 pcs.)

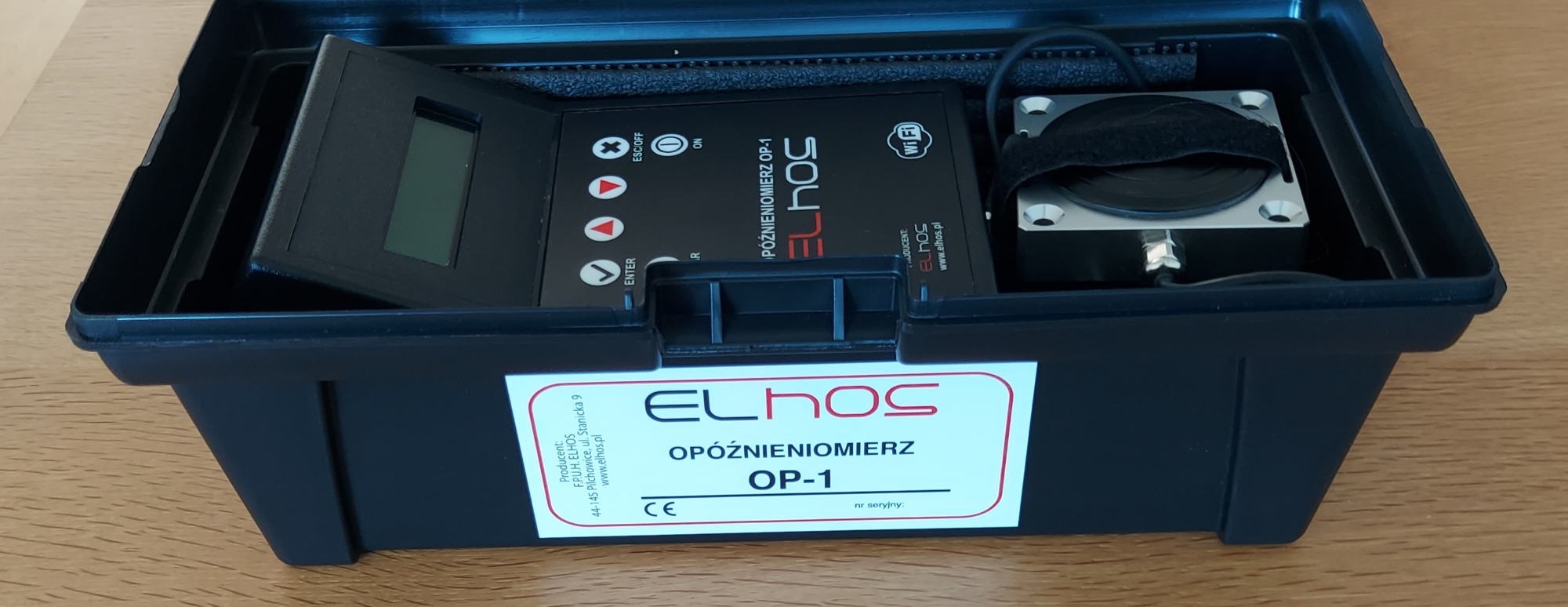

  • transport case

Additional equipment (option):

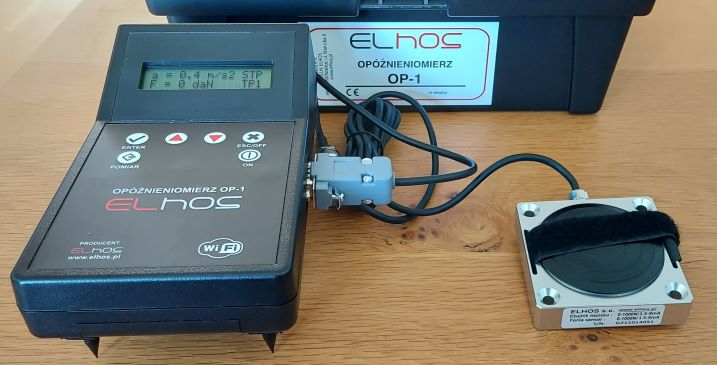

  • brake pedal pressure gauge
  • thermal printer
  • power cord from the 12 V socket
  • battery charger
  • USB port

The advanced measurement algorithm compensates for the so-called "diving effect".
